경사센서

HOME > Sensors > Position sensors

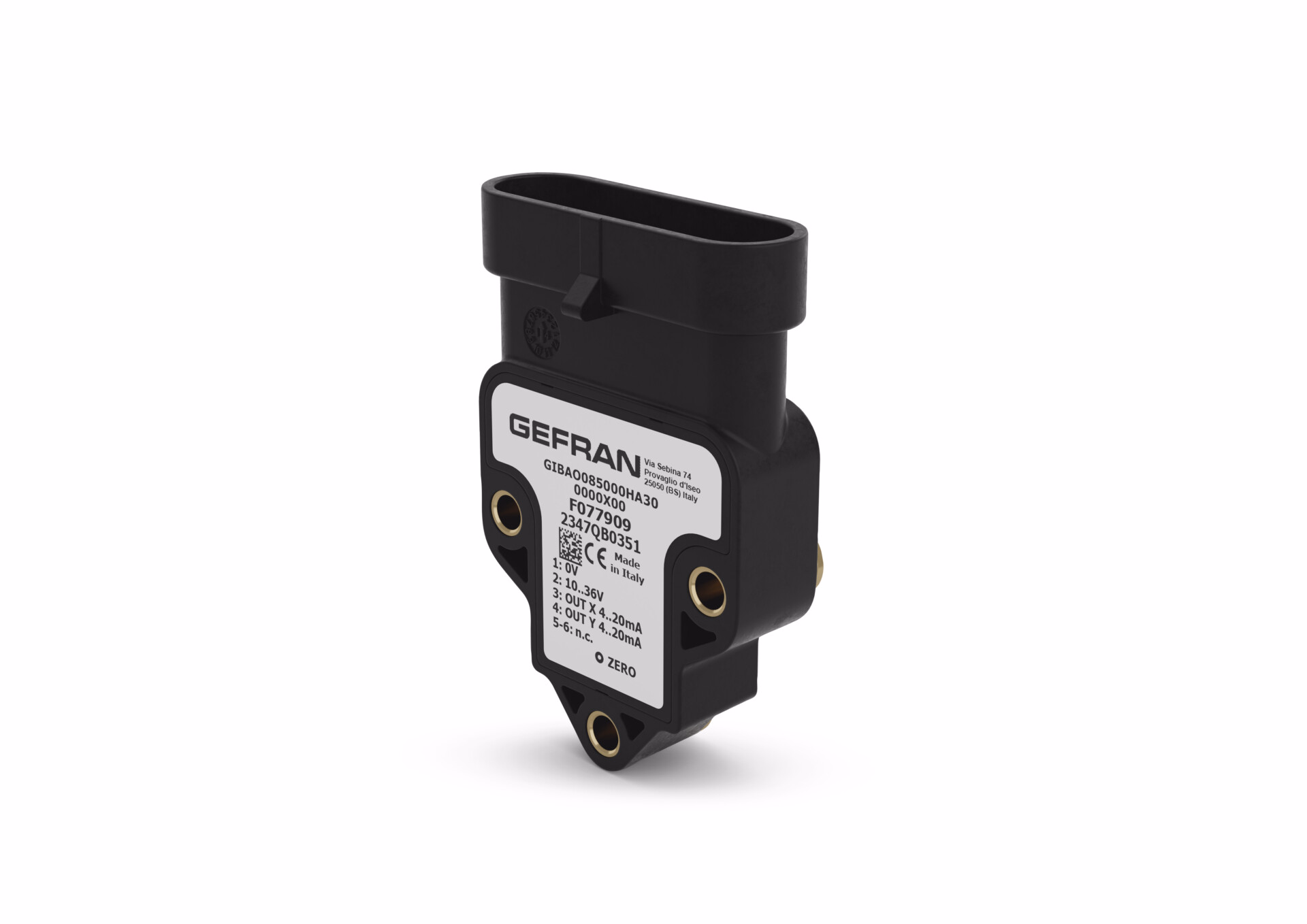

제품명 GIB

GIB
    Measurement range
  • ±10° ±15° ±20° ±30° ±45° ±60° ±85° (single axis Z for analogue output-dual axis XY)
  • 360° (±180°) single axis Z only
    Supply voltage
  • +5Vdc (only for 0.5..4.5Vdc output); +10…+36Vdc (see output signal for right supply voltage)
    Output signal
  • 0.5...4.5V RATIOMETRIC (supply +5Vdc); 0.5...4.5V; 0...10V; 4...20mA;
  • CANopen
    Linearity
  • < ± 0,5% FS (±10° to ±60°; ±180°); < ± 0.5% FS (±85°)
